Eureka

Eureka

1. SpringBoot 配置

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;

@EnableDiscoveryClient
@SpringBootApplication
public class Application {

    public static void main(String[] args) {
        SpringApplication.run(Application.class, args);
    }
}

2. Eureka

2.1 EnableDiscoveryClient注解

/**
* Annotation to enable a DiscoveryClient implementation.
* @author Spencer Gibb
*/
@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Inherited
@Import(EnableDiscoveryClientImportSelector.class)
public @interface EnableDiscoveryClient {

    /**
    * If true, the ServiceRegistry will automatically register the local server.
    */
    boolean autoRegister() default true;
}

主要用来开启DiscoveryClient的实例

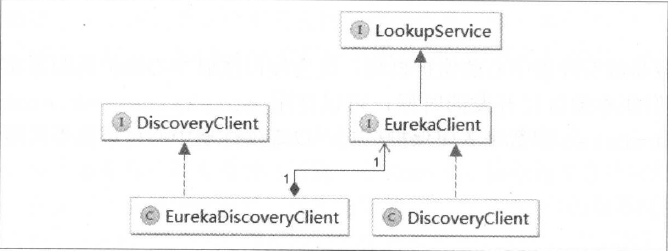

org.springframework.cloud.client.discovery.DiscoveryClient(左侧) : Spring Cloud的接口,定义了用户发现服务的常用抽象方法

/**
* DiscoveryClient represents read operations commonly available to Discovery service such as
* Netflix Eureka or consul.io
*/
public interface DiscoveryClient {

    /**
    * A human readable description of the implementation, used in HealthIndicator
    * @return the description
    */
    String description();

    /**
    * Get all ServiceInstances associated with a particular serviceId
    * @param serviceId the serviceId to query
    * @return a List of ServiceInstance
    */
    List<ServiceInstance> getInstances(String serviceId);

    /**
    * @return all known service ids
    */
    List<String> getServices();

}

com.netflix.discovery.DiscoveryClient(右侧): Netflix继承Eureka的发现服务的方法, 真正实现发现服务的类

Eureka Client负责的任务:

• 向Eureka Server注册服务实例
• 向Eureka Server服务续租
• 当服务关闭期间, 向Eureka Server取消租约
• 查询Eureka Server中的服务实例列表

@ImplementedBy(DiscoveryClient.class)
public interface EurekaClient extends LookupService {

    // ========================
    // getters for InstanceInfo
    // ========================
    public Applications getApplicationsForARegion(@Nullable String region);
    public Applications getApplications(String serviceUrl);
    public List<InstanceInfo> getInstancesByVipAddress(String vipAddress, boolean secure);
    public List<InstanceInfo> getInstancesByVipAddress(String vipAddress, boolean secure, @Nullable String region);
    public List<InstanceInfo> getInstancesByVipAddressAndAppName(String vipAddress, String appName, boolean secure);

    // ===========================
    // healthcheck related methods
    // ===========================
    public void registerHealthCheck(HealthCheckHandler healthCheckHandler);
    public void registerEventListener(EurekaEventListener eventListener);
    public boolean unregisterEventListener(EurekaEventListener eventListener);
    public HealthCheckHandler getHealthCheckHandler();

    // =============
    // other methods
    // =============
    public void shutdown();
    public EurekaClientConfig getEurekaClientConfig();
    public ApplicationInfoManager getApplicationInfoManager();
}

@Singleton
public class DiscoveryClient implements EurekaClient {
@Inject
DiscoveryClient(ApplicationInfoManager applicationInfoManager, EurekaClientConfig config, AbstractDiscoveryClientOptionalArgs args,
Provider<BackupRegistry> backupRegistryProvider) {
    ...

    try {
        // default size of 2 - 1 each for heartbeat and cacheRefresh
        scheduler = Executors.newScheduledThreadPool(2,
            new ThreadFactoryBuilder()
            .setNameFormat("DiscoveryClient-%d")
            .setDaemon(true)
            .build());

        heartbeatExecutor = new ThreadPoolExecutor(
            1, clientConfig.getHeartbeatExecutorThreadPoolSize(), 0, TimeUnit.SECONDS,
            new SynchronousQueue<Runnable>(),
            new ThreadFactoryBuilder()
            .setNameFormat("DiscoveryClient-HeartbeatExecutor-%d")
            .setDaemon(true)
            .build()
            ); // use direct handoff

        cacheRefreshExecutor = new ThreadPoolExecutor(
            1, clientConfig.getCacheRefreshExecutorThreadPoolSize(), 0, TimeUnit.SECONDS,
            new SynchronousQueue<Runnable>(),
            new ThreadFactoryBuilder()
            .setNameFormat("DiscoveryClient-CacheRefreshExecutor-%d")
            .setDaemon(true)
            .build()
            ); // use direct handoff

        eurekaTransport = new EurekaTransport();
        scheduleServerEndpointTask(eurekaTransport, args);

        AzToRegionMapper azToRegionMapper;
        if (clientConfig.shouldUseDnsForFetchingServiceUrls()) {
            azToRegionMapper = new DNSBasedAzToRegionMapper(clientConfig);
        } else {
            azToRegionMapper = new PropertyBasedAzToRegionMapper(clientConfig);
        }
        if (null != remoteRegionsToFetch.get()) {
            azToRegionMapper.setRegionsToFetch(remoteRegionsToFetch.get().split(","));
        }
        instanceRegionChecker = new InstanceRegionChecker(azToRegionMapper, clientConfig.getRegion());
        } catch (Throwable e) {
            throw new RuntimeException("Failed to initialize DiscoveryClient!", e);
        }

        ...
    }

    /**
    * 使用HTTP的形式注册服务
    * Register with the eureka service by making the appropriate REST call.
    */
    boolean register() throws Throwable {
        logger.info(PREFIX + "{}: registering service...", appPathIdentifier);
        EurekaHttpResponse<Void> httpResponse;
        try {
            httpResponse = eurekaTransport.registrationClient.register(instanceInfo);
        } catch (Exception e) {
            logger.warn(PREFIX + "{} - registration failed {}", appPathIdentifier, e.getMessage(), e);
            throw e;
        }
        if (logger.isInfoEnabled()) {
            logger.info(PREFIX + "{} - registration status: {}", appPathIdentifier, httpResponse.getStatusCode());
        }
        return httpResponse.getStatusCode() == 204;
    }

    /**
    * 服务续约和服务注册
    * Initializes all scheduled tasks.
    */
    private void initScheduledTasks() {
        if (clientConfig.shouldFetchRegistry()) {
            // registry cache refresh timer
            int registryFetchIntervalSeconds = clientConfig.getRegistryFetchIntervalSeconds();
            int expBackOffBound = clientConfig.getCacheRefreshExecutorExponentialBackOffBound();
            scheduler.schedule(
                    new TimedSupervisorTask(
                            "cacheRefresh",
                            scheduler,
                            cacheRefreshExecutor,
                            registryFetchIntervalSeconds,
                            TimeUnit.SECONDS,
                            expBackOffBound,
                            new CacheRefreshThread()
                    ),
                    registryFetchIntervalSeconds, TimeUnit.SECONDS);
        }

        if (clientConfig.shouldRegisterWithEureka()) {
            int renewalIntervalInSecs = instanceInfo.getLeaseInfo().getRenewalIntervalInSecs();
            int expBackOffBound = clientConfig.getHeartbeatExecutorExponentialBackOffBound();
            logger.info("Starting heartbeat executor: " + "renew interval is: {}", renewalIntervalInSecs);

            // Heartbeat timer
            scheduler.schedule(
                    new TimedSupervisorTask(
                            "heartbeat",
                            scheduler,
                            heartbeatExecutor,
                            renewalIntervalInSecs,
                            TimeUnit.SECONDS,
                            expBackOffBound,
                            new HeartbeatThread()
                    ),
                    renewalIntervalInSecs, TimeUnit.SECONDS);
        } else {
            logger.info("Not registering with Eureka server per configuration");
        }
    }
}

2.2 Eureka配置

配置参考: org.springframework.cloud.netflix.eureka.server.EurekaServerConfigBean org.springframework.cloud.netflix.eureka.EurekaClientConfigBean

服务注册

• 服务注册中心地址
• 服务获取的间隔时间
• 可用区域等

均以eureka.instance为前缀

服务实例

• 名称
• IP地址
• 端口号
• 健康检查路径

常用配置均已eureka.client为前缀

3. 跨平台支持

Eureka的通信机制使用了 HTTP 的 REST 接口实现, 这也是 Eureka 同其他服务注册工具的一个关键不同点. 由于 HTTP 的平台无关性, 虽然Eureka Server 通过Java实现, 但是在其他的微服务应用中并不限于使用Java来进行开发.

跨平台本事就是微服务架构的九大特性之一, 只有实现了对技术平台的透明, 才能更好地发挥不同余元对不同业务处理能力的优势,从而打造更为强大的大型系统.

处理Eureka 的java客户端只有, 还有其它语言平台对其支持, 比如 eureka-js-client, python-eureka等.
