Channel和Unsafe

1.Channel

1.1 功能说明

io.netty.channel.Channel是Netty的网络操作抽象类,聚合了一组功能,包括但不限于网络读写、客户端发起连接、主动关闭连接,同时也包含了Netty框架相关的一些功能,包括获取Channel的EventLoop,获取缓冲区分配器ByteBufAllocator和pipeline等.

1.2 JDK原生Channel对比

• JDK的SocketChannel和ServerSocketChannel没有统一的Channel接口供业务开发者使用.对用户而言,没有统一的操作视图,使用起来不方便.
• JDK的SocketChannel和ServerSocketChannel是SPI类接口,通过继承来扩展很不方便,不如开发一个新的.
• Netty的Channel需要能跟Netty架构融合在一起.
• 自定义Channel功能实现会更灵活

1.3 设计理念

• 在Channel接口层,采用Facade模式统一封装,将网络I/O操作、网络I/O相关联的其他操作封装起来,统一对外提供.
• Channel接口定义尽量大而全,为SocketChannel和ServerSocketChannel提供统一的视图,由不同子类实现不同的功能,公共功能在抽象父类中实现,最大程度上实现功能和接口的重用.
• 具体实现采用聚合而非包含的方式,Channel负责统一分配和调度,更加灵活.

1.4 Channel的功能

• 通道状态主要包括:打开、关闭、连接
• 通道主要的IO操作,读(read)、写(write)、连接(connect)、绑定(bind)
• 获取EventLoop
• 元数据 metadata,获取 TCP 参数配置等
• 所有的IO操作都是异步的,调用诸如read,write方法后,并不保证IO操作完成,但会返回一个凭证,在IO操作成功,取消或失败后会记录在该凭证中.
• channel有父子关系,SocketChannel是通过ServerSocketChannel接受创建的,故SocketChannel的parent()方法返回的就是ServerSocketChannel.
• 在Channel使用完毕后,请调用close方法,释放通道占用的资源

2.源码分析

2.1 Channel

public interface Channel extends AttributeMap, ChannelOutboundInvoker, Comparable<Channel> {

    /**
     * Returns the globally unique identifier of this {@link Channel}.
     *
     * Channel 的编号
     */
    ChannelId id();

    /**
     * Return the {@link EventLoop} this {@link Channel} was registered to.
     *
     * Channel 注册到的 EventLoop
     */
    EventLoop eventLoop();

    /**
     * Returns the parent of this channel.
     *
     * 父 Channel 对象
     *
     * @return the parent channel.
     *         {@code null} if this channel does not have a parent channel.
     */
    Channel parent();

    /**
     * Returns the configuration of this channel.
     *
     * Channel 配置参数
     */
    ChannelConfig config();

    /**
     * Returns {@code true} if the {@link Channel} is open and may get active later
     *
     * Channel 是否打开.
     *
     * true 表示 Channel 可用
     * false 表示 Channel 已关闭,不可用
     */
    boolean isOpen();

    /**
     * Returns {@code true} if the {@link Channel} is registered with an {@link EventLoop}.
     *
     * Channel 是否注册
     *
     * true 表示 Channel 已注册到 EventLoop 上
     * false 表示 Channel 未注册到 EventLoop 上
     */
    boolean isRegistered();

    /**
     * Return {@code true} if the {@link Channel} is active and so connected.
     *
     * Channel 是否激活
     *
     * 对于服务端 ServerSocketChannel ,true 表示 Channel 已经绑定到端口上,可提供服务
     * 对于客户端 SocketChannel ,true 表示 Channel 连接到远程服务器
     */
    boolean isActive();

    /**
     * Return the {@link ChannelMetadata} of the {@link Channel} which describe the nature of the {@link Channel}.
     *
     * Channel 元数据
     */
    ChannelMetadata metadata();

    /**
     * Returns the local address where this channel is bound to.  The returned
     * {@link SocketAddress} is supposed to be down-cast into more concrete
     * type such as {@link InetSocketAddress} to retrieve the detailed
     * information.
     *
     * 本地地址
     *
     * @return the local address of this channel.
     *         {@code null} if this channel is not bound.
     */
    SocketAddress localAddress();

    /**
     * Returns the remote address where this channel is connected to.  The
     * returned {@link SocketAddress} is supposed to be down-cast into more
     * concrete type such as {@link InetSocketAddress} to retrieve the detailed
     * information.
     *
     * 远端地址
     *
     * @return the remote address of this channel.
     *         {@code null} if this channel is not connected.
     *         If this channel is not connected but it can receive messages
     *         from arbitrary remote addresses (e.g. {@link DatagramChannel},
     *         use {@link DatagramPacket#recipient()} to determine
     *         the origination of the received message as this method will
     *         return {@code null}.
     */
    SocketAddress remoteAddress();

    /**
     * Returns the {@link ChannelFuture} which will be notified when this
     * channel is closed.  This method always returns the same future instance.
     *
     * Channel 关闭的 Future 对象
     */
    ChannelFuture closeFuture();

    /**
     * Returns {@code true} if and only if the I/O thread will perform the
     * requested write operation immediately.  Any write requests made when
     * this method returns {@code false} are queued until the I/O thread is
     * ready to process the queued write requests.
     *
     * Channel 是否可写
     *
     * 当 Channel 的写缓存区 outbound 非 null 且可写时,返回 true
     */
    boolean isWritable();

    /**
     * 获得距离不可写还有多少字节数
     *
     * Get how many bytes can be written until {@link #isWritable()} returns {@code false}.
     * This quantity will always be non-negative. If {@link #isWritable()} is {@code false} then 0.
     */
    long bytesBeforeUnwritable();

    /**
     * 获得距离可写还要多少字节数
     *
     * Get how many bytes must be drained from underlying buffers until {@link #isWritable()} returns {@code true}.
     * This quantity will always be non-negative. If {@link #isWritable()} is {@code true} then 0.
     */
    long bytesBeforeWritable();

    /**
     * Returns an <em>internal-use-only</em> object that provides unsafe operations.
     *
     * Unsafe 对象
     */
    Unsafe unsafe();

    /**
     * Return the assigned {@link ChannelPipeline}.
     *
     * ChannelPipeline 对象,用于处理 Inbound 和 Outbound 事件的处理
     */
    ChannelPipeline pipeline();

    /**
     * Return the assigned {@link ByteBufAllocator} which will be used to allocate {@link ByteBuf}s.
     *
     * ByteBuf 分配器
     */
    ByteBufAllocator alloc();

    @Override
    Channel read();

    @Override
    Channel flush();

    /**
     * <em>Unsafe</em> operations that should <em>never</em> be called from user-code. These methods
     * are only provided to implement the actual transport, and must be invoked from an I/O thread except for the
     * following methods:
     * <ul>
     *   <li>{@link #localAddress()}</li>
     *   <li>{@link #remoteAddress()}</li>
     *   <li>{@link #closeForcibly()}</li>
     *   <li>{@link #register(EventLoop, ChannelPromise)}</li>
     *   <li>{@link #deregister(ChannelPromise)}</li>
     *   <li>{@link #voidPromise()}</li>
     * </ul>
     */
    interface Unsafe {

        /**
         * Return the assigned {@link RecvByteBufAllocator.Handle} which will be used to allocate {@link ByteBuf}'s when
         * receiving data.
         *
         * ByteBuf 分配器的处理器
         */
        RecvByteBufAllocator.Handle recvBufAllocHandle();

        /**
         * Return the {@link SocketAddress} to which is bound local or
         * {@code null} if none.
         *
         * 本地地址
         */
        SocketAddress localAddress();

        /**
         * Return the {@link SocketAddress} to which is bound remote or
         * {@code null} if none is bound yet.
         *
         * 远端地址
         */
        SocketAddress remoteAddress();

        /**
         * Register the {@link Channel} of the {@link ChannelPromise} and notify
         * the {@link ChannelFuture} once the registration was complete.
         */
        void register(EventLoop eventLoop, ChannelPromise promise);

        /**
         * Bind the {@link SocketAddress} to the {@link Channel} of the {@link ChannelPromise} and notify
         * it once its done.
         */
        void bind(SocketAddress localAddress, ChannelPromise promise);

        /**
         * Connect the {@link Channel} of the given {@link ChannelFuture} with the given remote {@link SocketAddress}.
         * If a specific local {@link SocketAddress} should be used it need to be given as argument. Otherwise just
         * pass {@code null} to it.
         *
         * The {@link ChannelPromise} will get notified once the connect operation was complete.
         */
        void connect(SocketAddress remoteAddress, SocketAddress localAddress, ChannelPromise promise);

        /**
         * Disconnect the {@link Channel} of the {@link ChannelFuture} and notify the {@link ChannelPromise} once the
         * operation was complete.
         */
        void disconnect(ChannelPromise promise);

        /**
         * Close the {@link Channel} of the {@link ChannelPromise} and notify the {@link ChannelPromise} once the
         * operation was complete.
         */
        void close(ChannelPromise promise);

        /**
         * Closes the {@link Channel} immediately without firing any events.  Probably only useful
         * when registration attempt failed.
         */
        void closeForcibly();

        /**
         * Deregister the {@link Channel} of the {@link ChannelPromise} from {@link EventLoop} and notify the
         * {@link ChannelPromise} once the operation was complete.
         */
        void deregister(ChannelPromise promise);

        /**
         * Schedules a read operation that fills the inbound buffer of the first {@link ChannelInboundHandler} in the
         * {@link ChannelPipeline}.  If there's already a pending read operation, this method does nothing.
         */
        void beginRead();

        /**
         * Schedules a write operation.
         */
        void write(Object msg, ChannelPromise promise);

        /**
         * Flush out all write operations scheduled via {@link #write(Object, ChannelPromise)}.
         */
        void flush();

        /**
         * Return a special ChannelPromise which can be reused and passed to the operations in {@link Unsafe}.
         * It will never be notified of a success or error and so is only a placeholder for operations
         * that take a {@link ChannelPromise} as argument but for which you not want to get notified.
         */
        ChannelPromise voidPromise();

        /**
         * Returns the {@link ChannelOutboundBuffer} of the {@link Channel} where the pending write requests are stored.
         */
        ChannelOutboundBuffer outboundBuffer();
    }
}

2.2 AbstractChannel

1. 成员变量

   public abstract class AbstractChannel extends DefaultAttributeMap implements Channel {
    /**
     * 父 Channel 对象
     */
    private final Channel parent;
    /**
     * Channel 编号
     */
    private final ChannelId id;
    /**
     * Unsafe 对象
     */
    private final Unsafe unsafe;
    /**
     * DefaultChannelPipeline 对象
     */
    private final DefaultChannelPipeline pipeline;
    private final VoidChannelPromise unsafeVoidPromise = new VoidChannelPromise(this, false);
    private final CloseFuture closeFuture = new CloseFuture(this);

    /**
     * 本地地址
     */
    private volatile SocketAddress localAddress;
    /**
     * 远端地址
     */
    private volatile SocketAddress remoteAddress;
    /**
     * EventLoop 对象
     */
    private volatile EventLoop eventLoop;
    /**
     * 是否注册
     */
    private volatile boolean registered;
    /**
     * 关闭是否已经初始化
     *
     * @see AbstractUnsafe#close(ChannelPromise, Throwable, ClosedChannelException, boolean)
     */
    private boolean closeInitiated;

    /** Cache for the string representation of this channel */
    private boolean strValActive;
    private String strVal;

    /**
     * Creates a new instance.
     *
     * @param parent
     *        the parent of this channel. {@code null} if there's no parent.
     */
    protected AbstractChannel(Channel parent) {
        this.parent = parent;
        // 创建 ChannelId 对象
        id = newId();
        // 创建 Unsafe 对象
        unsafe = newUnsafe();
        // 创建 DefaultChannelPipeline 对象
        pipeline = newChannelPipeline();
    }
   }


2. 核心API

网络I/O操作是直接触发ChannelPipeline中的对应的事件方法.

public abstract class AbstractChannel extends DefaultAttributeMap implements Channel {
    @Override
    public ChannelFuture connect(SocketAddress remoteAddress, SocketAddress localAddress) {
        return pipeline.connect(remoteAddress, localAddress);
    }

    @Override
    public ChannelFuture disconnect() {
        return pipeline.disconnect();
    }

    @Override
    public ChannelFuture close() {
        return pipeline.close();
    }

    @Override
    public ChannelFuture deregister() {
        return pipeline.deregister();
    }

    @Override
    public Channel flush() {
        pipeline.flush();
        return this;
    }
}

1. 公共的API的具体实现

   public abstract class AbstractChannel extends DefaultAttributeMap implements Channel {
    @Override
    public SocketAddress remoteAddress() {
        SocketAddress remoteAddress = this.remoteAddress;
        if (remoteAddress == null) {
            try {
                this.remoteAddress = remoteAddress = unsafe().remoteAddress();
            } catch (Throwable t) {
                // Sometimes fails on a closed socket in Windows.
                return null;
            }
        }
        return remoteAddress;
    }
   }


2.3 AbstractNioChannel

1. 成员变量

   public abstract class AbstractNioChannel extends AbstractChannel {
    /**
     * Netty NIO Channel 对象,持有的 Java 原生 NIO 的 Channel 对象
     */
    private final SelectableChannel ch;
    /**
     * 感兴趣读事件的操作位值, 代表了JDK SelectionKey的OP_READ
     */
    protected final int readInterestOp;
    /**
     * 是Channel注册到EventLoop后返回的选择键
     */
    volatile SelectionKey selectionKey;
    boolean readPending;

    /**
     * 移除对“读”事件感兴趣的 Runnable 对象
     */
    private final Runnable clearReadPendingRunnable = new Runnable() {
        @Override
        public void run() {
            clearReadPending0();
        }
    };

    /**
     * 目前正在连接远程地址的 ChannelPromise 对象.
     *
     * The future of the current connection attempt.  If not null, subsequent
     * connection attempts will fail.
     */
    private ChannelPromise connectPromise;
    /**
     * 连接超时监听 ScheduledFuture 对象.
     */
    private ScheduledFuture<?> connectTimeoutFuture;
    /**
     * 正在连接的远程地址
     */
    private SocketAddress requestedRemoteAddress;
   }


2. 核心API

   public abstract class AbstractNioChannel extends AbstractChannel {
    @Override
    protected void doRegister() throws Exception {
        // 用selected标识是否操作成功
        boolean selected = false;
        for (;;) {
            try {
                // 调用SelectableChannel的register方法, 将当前Channel注册到EventLoop的多路复用器上
                // 注册的是0, 说明对任何事件都不敢兴趣,仅仅完成注册操作
                // 如果注册成功,返回selectionKey,通过selectionKey可以从多路复用器中获取Channel对象
                selectionKey = javaChannel().register(eventLoop().unwrappedSelector(), 0, this);
                return;
            } catch (CancelledKeyException e) {
                // 该key已经被取消
                if (!selected) {
                    // Force the Selector to select now as the "canceled" SelectionKey may still be
                    // cached and not removed because no Select.select(..) operation was called yet.
                    // 调用该方法将取消的key从selector中删除掉
                    eventLoop().selectNow();
                    selected = true;
                } else {
                    // We forced a select operation on the selector before but the SelectionKey is still cached
                    // for whatever reason. JDK bug ?
                    throw e;
                }
            }
        }
    }
   }


注册Channel的时候需要指定监听的忘了操作位来表示Channel对哪几类网络事件感兴趣

public abstract class SelectionKey {
    public static final int OP_READ = 1 << 0;
    public static final int OP_WRITE = 1 << 2;
    public static final int OP_CONNECT = 1 << 3;
    public static final int OP_ACCEPT = 1 << 4;
}

2.4 AbstractNioByteChannel

1. 成员变量

   public abstract class AbstractNioByteChannel extends AbstractNioChannel {
    private static final ChannelMetadata METADATA = new ChannelMetadata(false, 16);

    // 负责继续写半包消息
    private final Runnable flushTask = new Runnable() {
        @Override
        public void run() {
            // Calling flush0 directly to ensure we not try to flush messages that were added via write(...) in the
            // meantime.
            ((AbstractNioUnsafe) unsafe()).flush0();
        }
    };

    /**
     * Create a new instance
     *
     * @param parent            the parent {@link Channel} by which this instance was created. May be {@code null}
     * @param ch                the underlying {@link SelectableChannel} on which it operates
     */
    protected AbstractNioByteChannel(Channel parent, SelectableChannel ch) {
        super(parent, ch, SelectionKey.OP_READ);
    }
   }


2. 核心方法

   public abstract class AbstractNioByteChannel extends AbstractNioChannel {
    @Override
    protected void doWrite(ChannelOutboundBuffer in) throws Exception {
        // 类似并发编程的自旋次数, 尝试将数据写完
        int writeSpinCount = config().getWriteSpinCount();
        do {
            Object msg = in.current();
            if (msg == null) {
                // 如果为空,说明所有待发送的消息都已经发送完成
                // Wrote all messages.
                // 清除半包标识
                clearOpWrite();
                // Directly return here so incompleteWrite(...) is not called.
                return;
            }
            // 发送消息不为空,继续处理
            writeSpinCount -= doWriteInternal(in, msg);
        } while (writeSpinCount > 0);

        // 处理半包发送任务
        incompleteWrite(writeSpinCount < 0);
    }

    protected final void setOpWrite() {
        final SelectionKey key = selectionKey();
        // Check first if the key is still valid as it may be canceled as part of the deregistration
        // from the EventLoop
        // See https://github.com/netty/netty/issues/2104
        if (!key.isValid()) { // 合法
            return;
        }
        final int interestOps = key.interestOps();
        // 注册 SelectionKey.OP_WRITE 事件的感兴趣
        if ((interestOps & SelectionKey.OP_WRITE) == 0) {
            key.interestOps(interestOps | SelectionKey.OP_WRITE);
        }
    }

    protected final void clearOpWrite() {
        final SelectionKey key = selectionKey();
        // Check first if the key is still valid as it may be canceled as part of the deregistration
        // from the EventLoop
        // See https://github.com/netty/netty/issues/2104
        if (!key.isValid()) { // 合法
            return;
        }
        final int interestOps = key.interestOps();
        // 若注册了 SelectionKey.OP_WRITE ,则进行取消
        if ((interestOps & SelectionKey.OP_WRITE) != 0) {
            key.interestOps(interestOps & ~SelectionKey.OP_WRITE);
        }
    }

    private int doWriteInternal(ChannelOutboundBuffer in, Object msg) throws Exception {
        if (msg instanceof ByteBuf) {
            ByteBuf buf = (ByteBuf) msg;
            if (!buf.isReadable()) {
                in.remove();
                return 0;
            }

            final int localFlushedAmount = doWriteBytes(buf);
            if (localFlushedAmount > 0) {
                in.progress(localFlushedAmount);
                if (!buf.isReadable()) {
                    in.remove();
                }
                return 1;
            }
        } else if (msg instanceof FileRegion) {
            FileRegion region = (FileRegion) msg;
            if (region.transferred() >= region.count()) {
                in.remove();
                return 0;
            }

            long localFlushedAmount = doWriteFileRegion(region);
            if (localFlushedAmount > 0) {
                in.progress(localFlushedAmount);
                if (region.transferred() >= region.count()) {
                    in.remove();
                }
                return 1;
            }
        } else {
            // Should not reach here.
            throw new Error();
        }
        return WRITE_STATUS_SNDBUF_FULL;
    }

    protected final void incompleteWrite(boolean setOpWrite) {
        // Did not write completely.
        // true ,注册对 SelectionKey.OP_WRITE 事件感兴趣
        if (setOpWrite) {
            setOpWrite();
        // false ,取消对 SelectionKey.OP_WRITE 事件感兴趣
        } else {
            // It is possible that we have set the write OP, woken up by NIO because the socket is writable, and then
            // use our write quantum. In this case we no longer want to set the write OP because the socket is still
            // writable (as far as we know). We will find out next time we attempt to write if the socket is writable
            // and set the write OP if necessary.
            clearOpWrite();

            // Schedule flush again later so other tasks can be picked up in the meantime
            // 立即发起下一次 flush 任务
            eventLoop().execute(flushTask);
        }
    }
   }


2.5 AbstractNioMessageChannel

主要的方法也是doWrite,只不过上面发送的的是ByteBuf,而对于AbstractNioMessageChannel发送的是POJO

public abstract class AbstractNioMessageChannel extends AbstractNioChannel {
    @Override
    protected void doWrite(ChannelOutboundBuffer in) throws Exception {
        final SelectionKey key = selectionKey();
        final int interestOps = key.interestOps();

        for (;;) {
            // 从ChannelOutboundBuffer中弹出一条消息进行处理
            Object msg = in.current();
            if (msg == null) {
                // Wrote all messages.
                if ((interestOps & SelectionKey.OP_WRITE) != 0) {
                    key.interestOps(interestOps & ~SelectionKey.OP_WRITE);
                }
                break;
            }
            try {
                boolean done = false;
                for (int i = config().getWriteSpinCount() - 1; i >= 0; i--) {
                    if (doWriteMessage(msg, in)) {
                        done = true;
                        break;
                    }
                }

                if (done) {
                    in.remove();
                } else {
                    // Did not write all messages.
                    if ((interestOps & SelectionKey.OP_WRITE) == 0) {
                        key.interestOps(interestOps | SelectionKey.OP_WRITE);
                    }
                    break;
                }
            } catch (Exception e) {
                if (continueOnWriteError()) {
                    in.remove(e);
                } else {
                    throw e;
                }
            }
        }
    }
}

2.6 NioServerSocketChannel

1. 成员变量

   public class NioServerSocketChannel extends AbstractNioMessageChannel
                             implements io.netty.channel.socket.ServerSocketChannel {
    private static final ChannelMetadata METADATA = new ChannelMetadata(false, 16);
    private static final SelectorProvider DEFAULT_SELECTOR_PROVIDER = SelectorProvider.provider();

    private static final InternalLogger logger = InternalLoggerFactory.getInstance(NioServerSocketChannel.class);

    private static ServerSocketChannel newSocket(SelectorProvider provider) {
        try {
            /**
             *  Use the {@link SelectorProvider} to open {@link SocketChannel} and so remove condition in
             *  {@link SelectorProvider#provider()} which is called by each ServerSocketChannel.open() otherwise.
             *
             *  See <a href="https://github.com/netty/netty/issues/2308">#2308</a>.
             */
            return provider.openServerSocketChannel();
        } catch (IOException e) {
            throw new ChannelException("Failed to open a server socket.", e);
        }
    }

    private final ServerSocketChannelConfig config;
   }


2. 核心方法

   public class NioServerSocketChannel extends AbstractNioMessageChannel
                             implements io.netty.channel.socket.ServerSocketChannel {
        @Override
    protected int doReadMessages(List<Object> buf) throws Exception {
        // 接受客户端连接
        SocketChannel ch = SocketUtils.accept(javaChannel());

        try {
            // 创建 Netty NioSocketChannel 对象
            if (ch != null) {
                buf.add(new NioSocketChannel(this, ch));
                return 1;
            }
        } catch (Throwable t) {
            logger.warn("Failed to create a new channel from an accepted socket.", t);
            // 发生异常,关闭客户端的 SocketChannel 连接
            try {
                ch.close();
            } catch (Throwable t2) {
                logger.warn("Failed to close a socket.", t2);
            }
        }

        return 0;
    }
   }


3. 其它与服务的无关的

   public class NioServerSocketChannel extends AbstractNioMessageChannel
                             implements io.netty.channel.socket.ServerSocketChannel {
    @Override
    protected boolean doConnect(
            SocketAddress remoteAddress, SocketAddress localAddress) throws Exception {
        throw new UnsupportedOperationException();
    }

    @Override
    protected void doFinishConnect() throws Exception {
        throw new UnsupportedOperationException();
    }

    @Override
    protected SocketAddress remoteAddress0() {
        return null;
    }

    @Override
    protected void doDisconnect() throws Exception {
        throw new UnsupportedOperationException();
    }

    @Override
    protected boolean doWriteMessage(Object msg, ChannelOutboundBuffer in) throws Exception {
        throw new UnsupportedOperationException();
    }
   }


2.7 NioServerSocketChannel

1. 连接操作

   public class NioSocketChannel extends AbstractNioByteChannel implements io.netty.channel.socket.SocketChannel {
    @Override
    protected boolean doConnect(SocketAddress remoteAddress, SocketAddress localAddress) throws Exception {
        // 绑定本地地址
        if (localAddress != null) {
            doBind0(localAddress);
        }

        boolean success = false; // 执行是否成功
        try {
            // 连接远程地址
            boolean connected = SocketUtils.connect(javaChannel(), remoteAddress);
            // 若未连接完成,则关注连接( OP_CONNECT )事件.
            if (!connected) {
                selectionKey().interestOps(SelectionKey.OP_CONNECT);
            }
            // 标记执行是否成功
            success = true;
            // 返回是否连接完成
            return connected;
        } finally {
            // 执行失败,则关闭 Channel
            if (!success) {
                doClose();
            }
        }
    }
   }


2. 写操作

   public class NioSocketChannel extends AbstractNioByteChannel implements io.netty.channel.socket.SocketChannel {
    @Override
    protected void doWrite(ChannelOutboundBuffer in) throws Exception {
        SocketChannel ch = javaChannel();
        // 获得自旋写入次数
        int writeSpinCount = config().getWriteSpinCount();
        do {
            // 内存队列为空,结束循环,直接返回
            if (in.isEmpty()) {
                // 取消对 SelectionKey.OP_WRITE 的感兴趣
                // All written so clear OP_WRITE
                clearOpWrite();
                // Directly return here so incompleteWrite(...) is not called.
                return;
            }

            // 获得每次写入的最大字节数
            // Ensure the pending writes are made of ByteBufs only.
            int maxBytesPerGatheringWrite = ((NioSocketChannelConfig) config).getMaxBytesPerGatheringWrite();
            // 从内存队列中,获得要写入的 ByteBuffer 数组
            ByteBuffer[] nioBuffers = in.nioBuffers(1024, maxBytesPerGatheringWrite);
            // 写入的 ByteBuffer 数组的个数
            int nioBufferCnt = in.nioBufferCount();

            // 写入 ByteBuffer 数组,到对端
            // Always us nioBuffers() to workaround data-corruption.
            // See https://github.com/netty/netty/issues/2761
            switch (nioBufferCnt) {
                case 0:
                    // We have something else beside ByteBuffers to write so fallback to normal writes.
                    writeSpinCount -= doWrite0(in);
                    break;
                case 1: {
                    // Only one ByteBuf so use non-gathering write
                    // Zero length buffers are not added to nioBuffers by ChannelOutboundBuffer, so there is no need
                    // to check if the total size of all the buffers is non-zero.
                    ByteBuffer buffer = nioBuffers[0];
                    int attemptedBytes = buffer.remaining();
                    // 执行 NIO write 调用,写入单个 ByteBuffer 对象到对端
                    final int localWrittenBytes = ch.write(buffer);
                    // 写入字节小于等于 0 ,说明 NIO Channel 不可写,所以注册 SelectionKey.OP_WRITE ,等待 NIO Channel 可写,并返回以结束循环
                    if (localWrittenBytes <= 0) {
                        incompleteWrite(true);
                        return;
                    }
                    // 调整每次写入的最大字节数
                    adjustMaxBytesPerGatheringWrite(attemptedBytes, localWrittenBytes, maxBytesPerGatheringWrite);
                    // 从内存队列中,移除已经写入的数据( 消息 )
                    in.removeBytes(localWrittenBytes);
                    // 写入次数减一
                    --writeSpinCount;
                    break;
                }
                default: {
                    // Zero length buffers are not added to nioBuffers by ChannelOutboundBuffer, so there is no need
                    // to check if the total size of all the buffers is non-zero.
                    // We limit the max amount to int above so cast is safe
                    long attemptedBytes = in.nioBufferSize();
                    // 执行 NIO write 调用,写入多个 ByteBuffer 到对端
                    final long localWrittenBytes = ch.write(nioBuffers, 0, nioBufferCnt);
                    // 写入字节小于等于 0 ,说明 NIO Channel 不可写,所以注册 SelectionKey.OP_WRITE ,等待 NIO Channel 可写,并返回以结束循环
                    if (localWrittenBytes <= 0) {
                        incompleteWrite(true);
                        return;
                    }
                    // 调整每次写入的最大字节数
                    // Casting to int is safe because we limit the total amount of data in the nioBuffers to int above.
                    adjustMaxBytesPerGatheringWrite((int) attemptedBytes, (int) localWrittenBytes, maxBytesPerGatheringWrite);
                    // 从内存队列中,移除已经写入的数据( 消息 )
                    in.removeBytes(localWrittenBytes);
                    // 写入次数减一
                    --writeSpinCount;
                    break;
                }
            }
        } while (writeSpinCount > 0); // 循环自旋写入

        // 内存队列中的数据未完全写入,说明 NIO Channel 不可写,所以注册 SelectionKey.OP_WRITE ,等待 NIO Channel 可写
        incompleteWrite(writeSpinCount < 0);
    }
   }

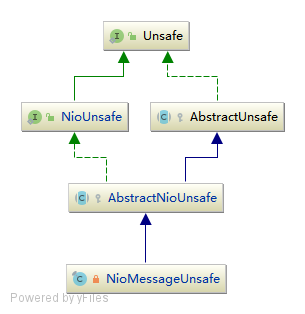

3.Unsafe

Unsafe函数不允许被用户代码使用,这些函数是真正用于数据传输操作,必须被IO线程调用

4.Unsafe源码分析

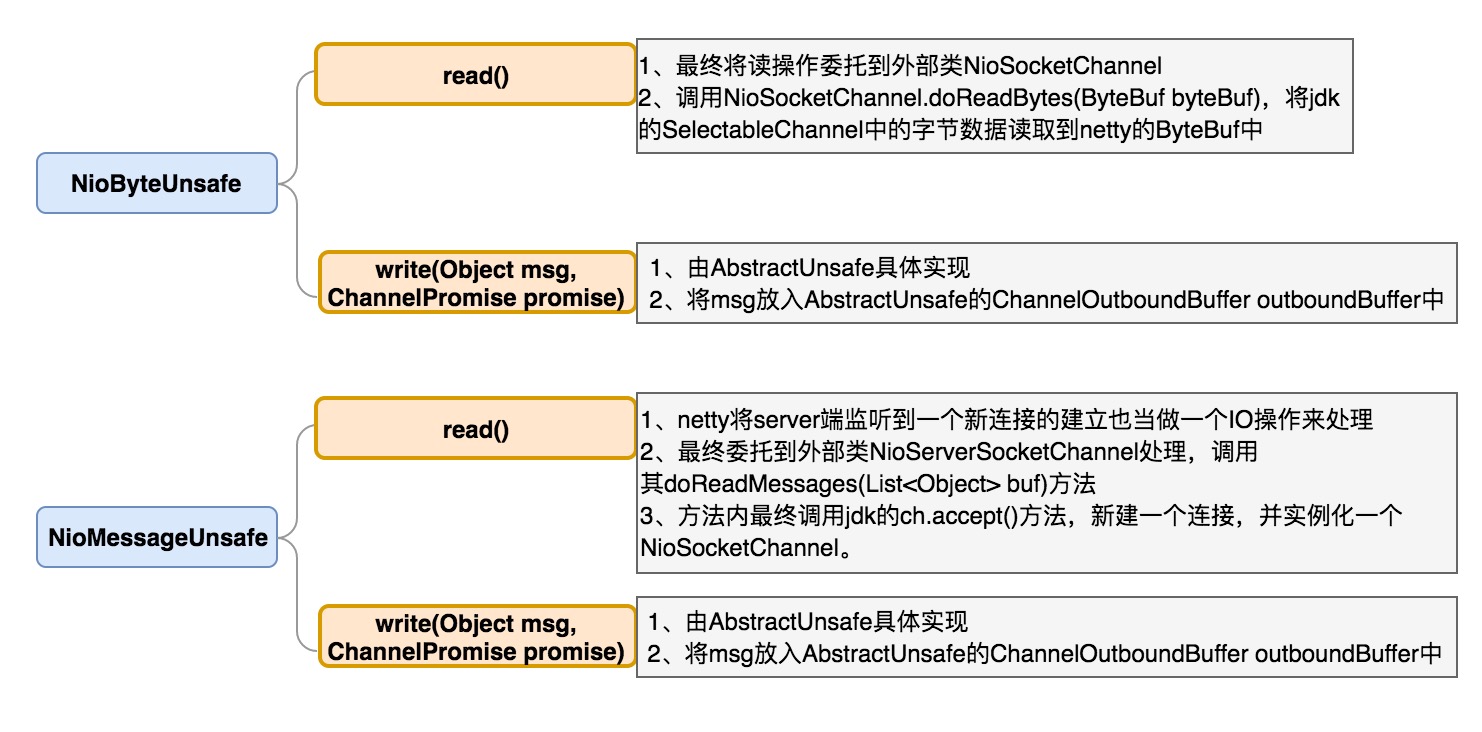

Unsafe读写操作

4.1 AbstractUnsafe

1. register方法

用于将当前Unsafe对应的Channel注册到EventLoop的多路复用器上.

/**
 * {@link Unsafe} implementation which sub-classes must extend and use.
 */
protected abstract class AbstractUnsafe implements Unsafe {
    @Override
    public final void register(EventLoop eventLoop, final ChannelPromise promise) {
        // 校验传入的 eventLoop 非空
        if (eventLoop == null) {
            throw new NullPointerException("eventLoop");
        }
        // 校验未注册
        if (isRegistered()) {
            promise.setFailure(new IllegalStateException("registered to an event loop already"));
            return;
        }
        // 校验 Channel 和 eventLoop 匹配
        if (!isCompatible(eventLoop)) {
            promise.setFailure(new IllegalStateException("incompatible event loop type: " + eventLoop.getClass().getName()));
            return;
        }

        // 设置 Channel 的 eventLoop 属性
        AbstractChannel.this.eventLoop = eventLoop;

        // 在 EventLoop 中执行注册逻辑
        if (eventLoop.inEventLoop()) {
            register0(promise);
        } else {
            // 由用户线程或者其他线程发起的注册操作
            try {
                eventLoop.execute(new Runnable() {
                    @Override
                    public void run() {
                        System.out.println(Thread.currentThread() + ": register");

                        register0(promise);
                    }
                });
            } catch (Throwable t) {
                logger.warn("Force-closing a channel whose registration task was not accepted by an event loop: {}", AbstractChannel.this, t);
                closeForcibly();
                closeFuture.setClosed();
                safeSetFailure(promise, t);
            }
        }
    }

    private void register0(ChannelPromise promise) {
        try {
            // check if the channel is still open as it could be closed in the mean time when the register
            // call was outside of the eventLoop
            if (!promise.setUncancellable() // TODO 1001 Promise
                    || !ensureOpen(promise)) { // 确保 Channel 是打开的
                return;
            }
            // 记录是否为首次注册
            boolean firstRegistration = neverRegistered;

            // 执行注册逻辑
            doRegister();

            // 标记首次注册为 false
            neverRegistered = false;
            // 标记 Channel 为已注册
            registered = true;

            // Ensure we call handlerAdded(...) before we actually notify the promise. This is needed as the
            // user may already fire events through the pipeline in the ChannelFutureListener.
            pipeline.invokeHandlerAddedIfNeeded();

            // 回调通知 `promise` 执行成功
            safeSetSuccess(promise);

            // 触发通知已注册事件
            pipeline.fireChannelRegistered();

            // Only fire a channelActive if the channel has never been registered. This prevents firing
            // multiple channel actives if the channel is deregistered and re-registered.
            if (isActive()) {
                if (firstRegistration) {
                    pipeline.fireChannelActive();
                } else if (config().isAutoRead()) {
                    // This channel was registered before and autoRead() is set. This means we need to begin read
                    // again so that we process inbound data.
                    //
                    // See https://github.com/netty/netty/issues/4805
                    beginRead();
                }
            }
        } catch (Throwable t) {
            // Close the channel directly to avoid FD leak.
            closeForcibly();
            closeFuture.setClosed();
            safeSetFailure(promise, t);
        }
    }
}

1. bind方法 用于绑定指定的端口,对于服务端,用于绑定监听端口;对于客户端,主要用于指定客户端Channel的本地绑定Socket地址

protected abstract class AbstractUnsafe implements Unsafe {
    @Override
    public final void bind(final SocketAddress localAddress, final ChannelPromise promise) {
        // 判断是否在 EventLoop 的线程中.
        assertEventLoop();

        if (!promise.setUncancellable() || !ensureOpen(promise)) {
            return;
        }

        // See: https://github.com/netty/netty/issues/576
        if (Boolean.TRUE.equals(config().getOption(ChannelOption.SO_BROADCAST)) &&
            localAddress instanceof InetSocketAddress &&
            !((InetSocketAddress) localAddress).getAddress().isAnyLocalAddress() &&
            !PlatformDependent.isWindows() && !PlatformDependent.maybeSuperUser()) {
            // Warn a user about the fact that a non-root user can't receive a
            // broadcast packet on *nix if the socket is bound on non-wildcard address.
            logger.warn(
                    "A non-root user can't receive a broadcast packet if the socket " +
                    "is not bound to a wildcard address; binding to a non-wildcard " +
                    "address (" + localAddress + ") anyway as requested.");
        }

        // 记录 Channel 是否激活
        boolean wasActive = isActive();

        // 绑定 Channel 的端口
        try {
            doBind(localAddress);
        } catch (Throwable t) {
            safeSetFailure(promise, t);
            closeIfClosed();
            return;
        }

        // 若 Channel 是新激活的,触发通知 Channel 已激活的事件.
        if (!wasActive && isActive()) {
            invokeLater(new Runnable() {
                @Override
                public void run() {
                    pipeline.fireChannelActive();
                }
            });
        }

        // 回调通知 promise 执行成功
        safeSetSuccess(promise);
    }
}

1. disconnect方法 用于客户端或者服务端主动关闭连接

protected abstract class AbstractUnsafe implements Unsafe {
    @Override
    public final void disconnect(final ChannelPromise promise) {
        assertEventLoop();

        if (!promise.setUncancellable()) {
            return;
        }

        boolean wasActive = isActive();
        try {
            doDisconnect();
        } catch (Throwable t) {
            safeSetFailure(promise, t);
            closeIfClosed();
            return;
        }

        if (wasActive && !isActive()) {
            invokeLater(new Runnable() {
                @Override
                public void run() {
                    pipeline.fireChannelInactive();
                }
            });
        }

        safeSetSuccess(promise);
        closeIfClosed(); // doDisconnect() might have closed the channel
    }
}

1. close 关闭链路

protected abstract class AbstractUnsafe implements Unsafe {
    @Override
    public final void close(final ChannelPromise promise) {
        assertEventLoop();

        // 关闭
        close(promise, CLOSE_CLOSED_CHANNEL_EXCEPTION, CLOSE_CLOSED_CHANNEL_EXCEPTION, false);
    }

    private void close(final ChannelPromise promise, final Throwable cause, final ClosedChannelException closeCause, final boolean notify) {
        // 设置 Promise 不可取消
        if (!promise.setUncancellable()) {
            return;
        }

        // 若关闭已经标记初始化
        if (closeInitiated) {
            // 关闭已经完成,直接通知 Promise 对象
            if (closeFuture.isDone()) {
                // Closed already.
                safeSetSuccess(promise);
            // 关闭未完成,通过监听器通知 Promise 对象
            } else if (!(promise instanceof VoidChannelPromise)) { // Only needed if no VoidChannelPromise.
                // This means close() was called before so we just register a listener and return
                closeFuture.addListener(new ChannelFutureListener() {
                    @Override
                    public void operationComplete(ChannelFuture future) throws Exception {
                        promise.setSuccess();
                    }
                });
            }
            return;
        }

        // 标记关闭已经初始化
        closeInitiated = true;

        // 获得 Channel 是否激活
        final boolean wasActive = isActive();
        // 标记 outboundBuffer 为空
        final ChannelOutboundBuffer outboundBuffer = this.outboundBuffer;
        this.outboundBuffer = null; // Disallow adding any messages and flushes to outboundBuffer.
        // 执行准备关闭
        Executor closeExecutor = prepareToClose();
        // 若 closeExecutor 非空
        if (closeExecutor != null) {
            closeExecutor.execute(new Runnable() {
                @Override
                public void run() {
                    try {
                        // 在 closeExecutor 中,执行关闭
                        // Execute the close.
                        doClose0(promise);
                    } finally {
                        // 在 EventLoop 中,执行
                        // Call invokeLater so closeAndDeregister is executed in the EventLoop again!
                        invokeLater(new Runnable() {
                            @Override
                            public void run() {
                                if (outboundBuffer != null) {
                                    // 写入数据( 消息 )到对端失败,通知相应数据对应的 Promise 失败.
                                    // Fail all the queued messages
                                    outboundBuffer.failFlushed(cause, notify);
                                    // 关闭内存队列
                                    outboundBuffer.close(closeCause);
                                }
                                // 执行取消注册,并触发 Channel Inactive 事件到 pipeline 中
                                fireChannelInactiveAndDeregister(wasActive);
                            }
                        });
                    }
                }
            });
        // 若 closeExecutor 为空
        } else {
            try {
                // 执行关闭
                // Close the channel and fail the queued messages in all cases.
                doClose0(promise);
            } finally {
                if (outboundBuffer != null) {
                    // 写入数据( 消息 )到对端失败,通知相应数据对应的 Promise 失败.
                    // Fail all the queued messages.
                    outboundBuffer.failFlushed(cause, notify);
                    // 关闭内存队列
                    outboundBuffer.close(closeCause);
                }
            }
            // 正在 flush 中,在 EventLoop 中执行执行取消注册,并触发 Channel Inactive 事件到 pipeline 中
            if (inFlush0) {
                invokeLater(new Runnable() {
                    @Override
                    public void run() {
                        fireChannelInactiveAndDeregister(wasActive);
                    }
                });
            // 不在 flush 中,直接执行执行取消注册,并触发 Channel Inactive 事件到 pipeline 中
            } else {
                fireChannelInactiveAndDeregister(wasActive);
            }
        }
    }

    private void doClose0(ChannelPromise promise) {
        try {
            // 执行关闭
            doClose();
            // 通知 closeFuture 关闭完成
            closeFuture.setClosed();
            // 通知 Promise 关闭成功
            safeSetSuccess(promise);
        } catch (Throwable t) {
            // 通知 closeFuture 关闭完成
            closeFuture.setClosed();
            // 通知 Promise 关闭异常
            safeSetFailure(promise, t);
        }
    }
}

1. write 将消息添加到环形发送数组中,并不是真正的写Channel

protected abstract class AbstractUnsafe implements Unsafe {
    @Override
    public final void write(Object msg, ChannelPromise promise) {
        assertEventLoop();

        ChannelOutboundBuffer outboundBuffer = this.outboundBuffer;
        // 内存队列为空
        if (outboundBuffer == null) {
            // 内存队列为空,一般是 Channel 已经关闭,所以通知 Promise 异常结果
            // If the outboundBuffer is null we know the channel was closed and so
            // need to fail the future right away. If it is not null the handling of the rest
            // will be done in flush0()
            // See https://github.com/netty/netty/issues/2362
            safeSetFailure(promise, WRITE_CLOSED_CHANNEL_EXCEPTION);
            // 释放消息( 对象 )相关的资源
            // release message now to prevent resource-leak
            ReferenceCountUtil.release(msg);
            return;
        }

        int size;
        try {
            // 过滤写入的消息( 数据 )
            msg = filterOutboundMessage(msg);
            // 计算消息的长度
            size = pipeline.estimatorHandle().size(msg);
            if (size < 0) {
                size = 0;
            }
        } catch (Throwable t) {
            // 通知 Promise 异常结果
            safeSetFailure(promise, t);
            // 释放消息( 对象 )相关的资源
            ReferenceCountUtil.release(msg);
            return;
        }

        // 写入消息( 数据 )到内存队列
        outboundBuffer.addMessage(msg, size, promise);
    }
}

1. flush 负责将发送缓冲区中待发送的消息全部写入Channel中,并发送给通信对方 ```java protected abstract class AbstractUnsafe implements Unsafe { @Override public final void flush() {

    assertEventLoop();

    // 内存队列为 null ,一般是 Channel 已经关闭,所以直接返回.
    ChannelOutboundBuffer outboundBuffer = this.outboundBuffer;
    if (outboundBuffer == null) {
        return;
    }

    // 标记内存队列开始 flush
    outboundBuffer.addFlush();
    // 执行 flush
    flush0();


   }

   protected void flush0() {

    // 正在 flush 中,所以直接返回.
    if (inFlush0) {
        // Avoid re-entrance
        return;
    }

    // 内存队列为 null ,一般是 Channel 已经关闭,所以直接返回.
    // 内存队列为空,无需 flush ,所以直接返回
    final ChannelOutboundBuffer outboundBuffer = this.outboundBuffer;
    if (outboundBuffer == null || outboundBuffer.isEmpty()) {
        return;
    }

    // 标记正在 flush 中.
    inFlush0 = true;

    // 若未激活,通知 flush 失败
    // Mark all pending write requests as failure if the channel is inactive.
    if (!isActive()) {
        try {
            if (isOpen()) {
                outboundBuffer.failFlushed(FLUSH0_NOT_YET_CONNECTED_EXCEPTION, true);
            } else {
                // Do not trigger channelWritabilityChanged because the channel is closed already.
                outboundBuffer.failFlushed(FLUSH0_CLOSED_CHANNEL_EXCEPTION, false);
            }
        } finally {
            // 标记不在 flush 中.
            inFlush0 = false;
        }
        return;
    }

    // 执行真正的写入到对端
    try {
        doWrite(outboundBuffer);
    } catch (Throwable t) {
        if (t instanceof IOException && config().isAutoClose()) {
            /**
                * Just call {@link #close(ChannelPromise, Throwable, boolean)} here which will take care of
                * failing all flushed messages and also ensure the actual close of the underlying transport
                * will happen before the promises are notified.
                *
                * This is needed as otherwise {@link #isActive()} , {@link #isOpen()} and {@link #isWritable()}
                * may still return {@code true} even if the channel should be closed as result of the exception.
                */
            close(voidPromise(), t, FLUSH0_CLOSED_CHANNEL_EXCEPTION, false);
        } else {
            try {
                shutdownOutput(voidPromise(), t);
            } catch (Throwable t2) {
                close(voidPromise(), t2, FLUSH0_CLOSED_CHANNEL_EXCEPTION, false);
            }
        }
    } finally {
        // 标记不在 flush 中.
        inFlush0 = false;
    }


   } }

public final class ChannelOutboundBuffer { /**

 * Add a flush to this {@link ChannelOutboundBuffer}. This means all previous added messages are marked as flushed
 * and so you will be able to handle them.
 */
public void addFlush() {
    // There is no need to process all entries if there was already a flush before and no new messages
    // where added in the meantime.
    //
    // See https://github.com/netty/netty/issues/2577
    Entry entry = unflushedEntry;
    if (entry != null) {
        // 若 flushedEntry 为空,赋值为 unflushedEntry ,用于记录第一个( 开始 ) flush 的 Entry .
        if (flushedEntry == null) {
            // there is no flushedEntry yet, so start with the entry
            flushedEntry = entry;
        }
        // 计算 flush 的数量,并设置每个 Entry 对应的 Promise 不可取消
        do {
            // 增加 flushed
            flushed ++;
            // 设置 Promise 不可取消
            if (!entry.promise.setUncancellable()) { // 设置失败
                // 减少 totalPending 计数
                // Was cancelled so make sure we free up memory and notify about the freed bytes
                int pending = entry.cancel();
                decrementPendingOutboundBytes(pending, false, true);
            }
            // 获得下一个 Entry
            entry = entry.next;
        } while (entry != null);

        // 设置 unflushedEntry 为空,表示所有都 flush
        // All flushed so reset unflushedEntry
        unflushedEntry = null;
    }
}

}

### 4.2 AbstractNioUnsafe

1. connect
```java
protected abstract class AbstractNioUnsafe extends AbstractUnsafe implements NioUnsafe {
    @Override
    public final void connect(final SocketAddress remoteAddress, final SocketAddress localAddress, final ChannelPromise promise) {
        if (!promise.setUncancellable() || !ensureOpen(promise)) {
            return;
        }

        try {
            // 目前有正在连接远程地址的 ChannelPromise ,则直接抛出异常,禁止同时发起多个连接.
            if (connectPromise != null) {
                // Already a connect in process.
                throw new ConnectionPendingException();
            }

            // 记录 Channel 是否激活
            boolean wasActive = isActive();

            // 执行连接远程地址
            if (doConnect(remoteAddress, localAddress)) {
                fulfillConnectPromise(promise, wasActive);
            } else {
                // 记录 connectPromise
                connectPromise = promise;
                // 记录 requestedRemoteAddress
                requestedRemoteAddress = remoteAddress;

                // 使用 EventLoop 发起定时任务,监听连接远程地址超时.若连接超时,则回调通知 connectPromise 超时异常.
                // Schedule connect timeout.
                int connectTimeoutMillis = config().getConnectTimeoutMillis(); // 默认 30 * 1000 毫秒
                if (connectTimeoutMillis > 0) {
                    connectTimeoutFuture = eventLoop().schedule(new Runnable() {
                        @Override
                        public void run() {
                            ChannelPromise connectPromise = AbstractNioChannel.this.connectPromise;
                            ConnectTimeoutException cause = new ConnectTimeoutException("connection timed out: " + remoteAddress);
                            if (connectPromise != null && connectPromise.tryFailure(cause)) {
                                close(voidPromise());
                            }
                        }
                    }, connectTimeoutMillis, TimeUnit.MILLISECONDS);
                }

                // 添加监听器,监听连接远程地址取消.
                promise.addListener(new ChannelFutureListener() {
                    @Override
                    public void operationComplete(ChannelFuture future) throws Exception {
                        if (future.isCancelled()) {
                            // 取消定时任务
                            if (connectTimeoutFuture != null) {
                                connectTimeoutFuture.cancel(false);
                            }
                            // 置空 connectPromise
                            connectPromise = null;
                            close(voidPromise());
                        }
                    }
                });
            }
        } catch (Throwable t) {
            // 回调通知 promise 发生异常
            promise.tryFailure(annotateConnectException(t, remoteAddress));
            closeIfClosed();
        }
    }

    private void fulfillConnectPromise(ChannelPromise promise, boolean wasActive) {
        if (promise == null) {
            // Closed via cancellation and the promise has been notified already.
            return;
        }

        // 获得 Channel 是否激活
        // Get the state as trySuccess() may trigger an ChannelFutureListener that will close the Channel.
        // We still need to ensure we call fireChannelActive() in this case.
        boolean active = isActive();

        // 回调通知 promise 执行成功
        // trySuccess() will return false if a user cancelled the connection attempt.
        boolean promiseSet = promise.trySuccess();

        // 若 Channel 是新激活的,触发通知 Channel 已激活的事件.
        // Regardless if the connection attempt was cancelled, channelActive() event should be triggered,
        // because what happened is what happened.
        if (!wasActive && active) {
            pipeline().fireChannelActive();
        }

        // If a user cancelled the connection attempt, close the channel, which is followed by channelInactive().
        if (!promiseSet) {
            close(voidPromise());
        }
    }
}

1. finishConnect

   protected abstract class AbstractNioUnsafe extends AbstractUnsafe implements NioUnsafe {
    @Override
    public final void finishConnect() {
        // Note this method is invoked by the event loop only if the connection attempt was
        // neither cancelled nor timed out.
        // 判断是否在 EventLoop 的线程中.
        assert eventLoop().inEventLoop();

        try {
            // 获得 Channel 是否激活
            boolean wasActive = isActive();
            // 执行完成连接
            doFinishConnect();
            // 通知 connectPromise 连接完成
            fulfillConnectPromise(connectPromise, wasActive);
        } catch (Throwable t) {
            // 通知 connectPromise 连接异常
            fulfillConnectPromise(connectPromise, annotateConnectException(t, requestedRemoteAddress));
        } finally {
            // 取消 connectTimeoutFuture 任务
            // Check for null as the connectTimeoutFuture is only created if a connectTimeoutMillis > 0 is used
            // See https://github.com/netty/netty/issues/1770
            if (connectTimeoutFuture != null) {
                connectTimeoutFuture.cancel(false);
            }
            // 置空 connectPromise
            connectPromise = null;
        }
    }
   }


4.3 NioByteUnsafe

1. read

   protected class NioByteUnsafe extends AbstractNioUnsafe {
    @Override
    @SuppressWarnings("Duplicates")
    public final void read() {
        final ChannelConfig config = config();
        // 若 inputClosedSeenErrorOnRead = true ,移除对 SelectionKey.OP_READ 事件的感兴趣.
        if (shouldBreakReadReady(config)) {
            clearReadPending();
            return;
        }
        final ChannelPipeline pipeline = pipeline();
        final ByteBufAllocator allocator = config.getAllocator();
        // 获得 RecvByteBufAllocator.Handle 对象
        final RecvByteBufAllocator.Handle allocHandle = recvBufAllocHandle();
        // 重置 RecvByteBufAllocator.Handle 对象
        allocHandle.reset(config);

        ByteBuf byteBuf = null;
        boolean close = false; // 是否关闭连接
        try {
            do {
                // 申请 ByteBuf 对象
                byteBuf = allocHandle.allocate(allocator);
                // 读取数据
                // 设置最后读取字节数
                allocHandle.lastBytesRead(doReadBytes(byteBuf));
                // <1> 未读取到数据
                if (allocHandle.lastBytesRead() <= 0) {
                    // 释放 ByteBuf 对象
                    // nothing was read. release the buffer.
                    byteBuf.release();
                    // 置空 ByteBuf 对象
                    byteBuf = null;
                    // 如果最后读取的字节为小于 0 ,说明对端已经关闭
                    close = allocHandle.lastBytesRead() < 0;
                    // TODO
                    if (close) {
                        // There is nothing left to read as we received an EOF.
                        readPending = false;
                    }
                    // 结束循环
                    break;
                }

                // <2> 读取到数据

                // 读取消息数量 + localRead
                allocHandle.incMessagesRead(1);
                readPending = false;
                // 触发 Channel read 事件到 pipeline 中
                pipeline.fireChannelRead(byteBuf);
                // 置空 ByteBuf 对象
                byteBuf = null;
            } while (allocHandle.continueReading()); // 循环判断是否继续读取

            // 读取完成
            allocHandle.readComplete();
            // 触发 Channel readComplete 事件到 pipeline 中.
            pipeline.fireChannelReadComplete();

            if (close) {
                closeOnRead(pipeline);
            }
        } catch (Throwable t) {
            handleReadException(pipeline, byteBuf, t, close, allocHandle);
        } finally {
            // Check if there is a readPending which was not processed yet.
            // This could be for two reasons:
            // * The user called Channel.read() or ChannelHandlerContext.read() in channelRead(...) method
            // * The user called Channel.read() or ChannelHandlerContext.read() in channelReadComplete(...) method
            //
            // See https://github.com/netty/netty/issues/2254
            if (!readPending && !config.isAutoRead()) {
                removeReadOp();
            }
        }
    }
   }
